Code I6423450

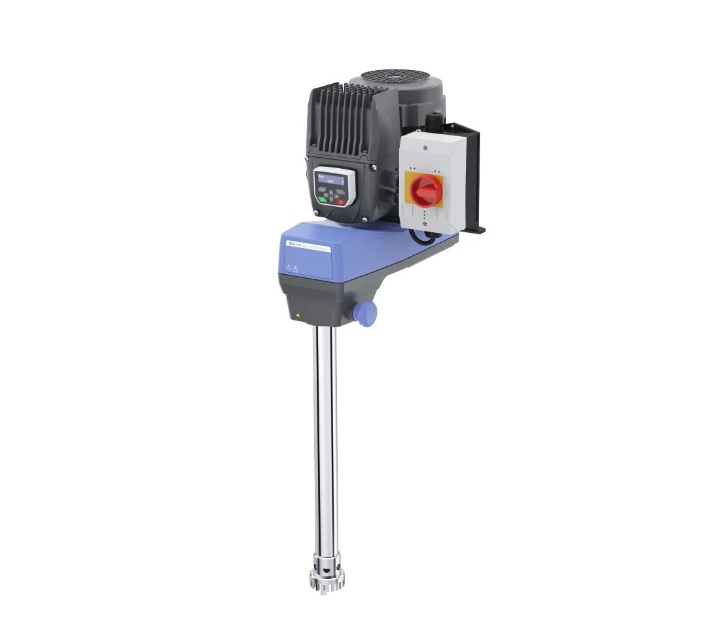

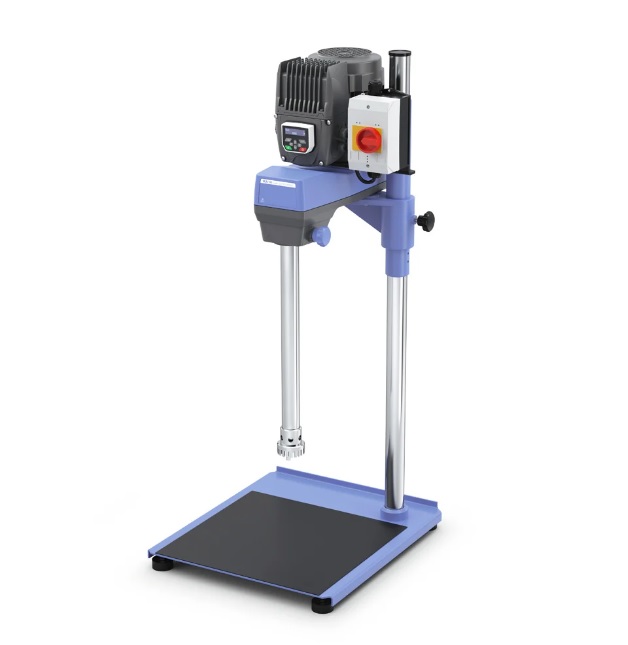

ULTRA TURRAX homogenizer mod. T65 digital

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display.

It offers a wide speed range from 1000 – 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters.

Three rotor-stator configurations guarantee a wide range of applications.

Reproducible operations due to constant speed even with changes in viscosities.

  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Plug-in connectors facilitate exchange of dispersing elements
  • Optional stainless steel dispersing elements for use under vacuum and pressure
  • Error code display
  • Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)


The device requires a 3-phase electricity supply in order to operate. The connection of the unit to the power supply must be done by a qualified electrician. Wiring diagrams are included in the manual for reference.


Scope of delivery

  • T 65 digital ULTRA-TURRAX®
  • Rotor wrench
  • Hook wrench
  • Shaft wrench
  • Cable gland for switch cable (2 pcs.)
  • Hexagon L-wrench
Motor rating input 2600 W
Motor rating output 2200 W
Volume range (H2O) 2 - 50 l
Viscosity max. 5000 mPas
Speed range 1000 - 9500 rpm
Speed deviation 3 %
Speed adjustment stepless
Speed display 7 segment LED
Noise without element 75 dB(A)
Process type batch
Dimensions (W x H x D) 300 x 420 x 400 mm
Weight 35 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 54
Voltage 3 x 400 V
Frequency 50/60 Hz
Power input 2600 W
Other voltage variants available (3 x 400 V / 3 x 230 V)
